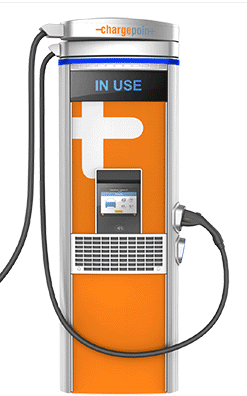

Chargepoint EXPRESS 250 DC Fast Charging Stations

ChargePoint Express 250 DCFC charging stations are delivered with the following features:

• Base rating: 62.5 kW per port. Includes two power modules (31.25 kW each) and provides 62.5 kW to one port when single EV is connected. Power modules include liquid cooling.
• Two CPE250 stations can be paired to reach maximum output of 125 kW per port.
• Cord / connector available include CCS1 and/or CHAdeMO cord, 14’ horizontal reach and 200 Amp rating. Can be ordered with a single connector type or combination. Each cable includes cord management.
• Input: 480 VAC, 80 Amp, 3-Phase, 4 conductors UL, cUL (Canada) and CE certifications
• Operating Temperature: -22°C to 50°C (-30°F to 122°F)
• Dynamic power management
• Video w/ touchscreen
• Access through RFID reader, cell phone app
• Cellular connectivity / North America Modem/SIM card. OCPP supported. Remote system monitoring.
• Alignment mounting plate included (part # CPE250-CMT)

Support services available for ChargePoint Express 250 DCFC charging stations:

• ChargePoint’s standard one year Warranty covering material and workmanship. Additional annual ChargePoint’s Assure Warranty Plans, including labor and material costs, are available for 1 through 5 years.
• ChargePoint Enterprise Cloud Plan is required and provided against an annual fee. The Cloud plan may be purchased for 1 to 5 years duration. This includes flex billing, waitlisting, driver access controls, customizable videos, reservations, 24/7 driver support, 24/7 station monitoring, station manager support, automatic software updates, data and analytics, fleet vehicle management, Valet dashboards, power management, and more.
• ChargePoint’s Site Activation process is required for all installation, including station pinpointing (geo-spatial locating), station activation and initial configuration.
